ASME Certified
UV & NB stamped
100% Tested
Every valve, every time
American Made
Manufactured since 1912
Specifications & Details

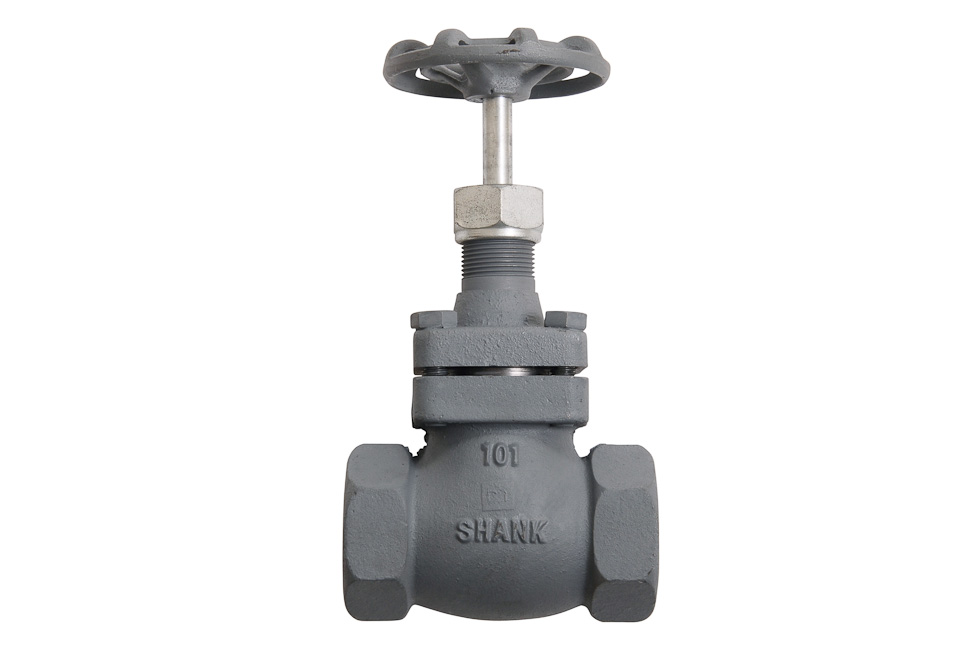

Bolted bonnet shut-off valves in a globe or angle design to work with pipe sizes from 1 ¼” to 2”. This sturdy valve body is made from cast iron and is pressure tested for leakage after assembly.
Bolted Bonnet Globe Shut-Off Valve Specifications
Pipe Size
- 101
- 1 ¼”
Weight, lbs
- 101
- 15.5
A – Center to Side Outlet
- 101
- 3 1/8”
B – Face to Face, Rim
- 101
- 6 ¼”
C – Center to Top (open)
- 101
- 10”
D – Center to Bottom
- 101
- 1 ¾”
| Catalog Number | 101 |
|---|---|
| Pipe Size | 1 ¼” |
| Weight, lbs | 15.5 |
| A – Center to Side Outlet | 3 1/8” |
| B – Face to Face, Rim | 6 ¼” |
| C – Center to Top (open) | 10” |
| D – Center to Bottom | 1 ¾” |
Additional Information
- Back seating is provided for re-packing while valve is under pressure.
- Uses a swivel and self-aligning seat.
- Hand wheels are proportioned for easy operation.
