Specifications & Details
Additional Specifications
3/4"
- Outlet
- -
- Replacement Insert
- Handwheel
- Connections
- NPT Thread
| Inlet | Outlet | Replacement Insert | Connections |
|---|---|---|---|
| 3/4" | - | Handwheel | NPT Thread |
Pipe Size
- 844
- ¾”
Port Sizes
- 844
- ¾” x ¾” x ¾”
Weight, lbs.
- 844
- 6 ½
Cv Values (both Ports)
- 844
- 6.8
Face to Face on Outlet Ports
- 844
- 4”
B: Center to Bottom
- 844
- 1 ¾”
C: Center to Top of Wheel (Open) or Seal Cap
- 844
- 7 1/8”
D: Center to Face of Inlet Port
- 844
- 2”
W: Diameter of Wheel
- 844
- 4”
| Catalog Number | 844 |
|---|---|
| Pipe Size | ¾” |
| Port Sizes | ¾” x ¾” x ¾” |
| Weight, lbs. | 6 ½ |
| Cv Values (both Ports) | 6.8 |
| Face to Face on Outlet Ports | 4” |
| B: Center to Bottom | 1 ¾” |
| C: Center to Top of Wheel (Open) or Seal Cap | 7 1/8” |
| D: Center to Face of Inlet Port | 2” |
| W: Diameter of Wheel | 4” |

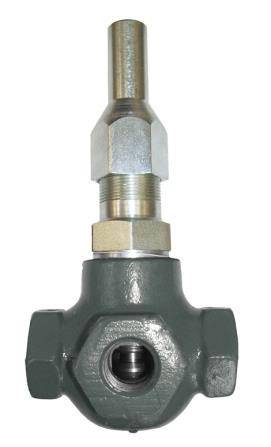

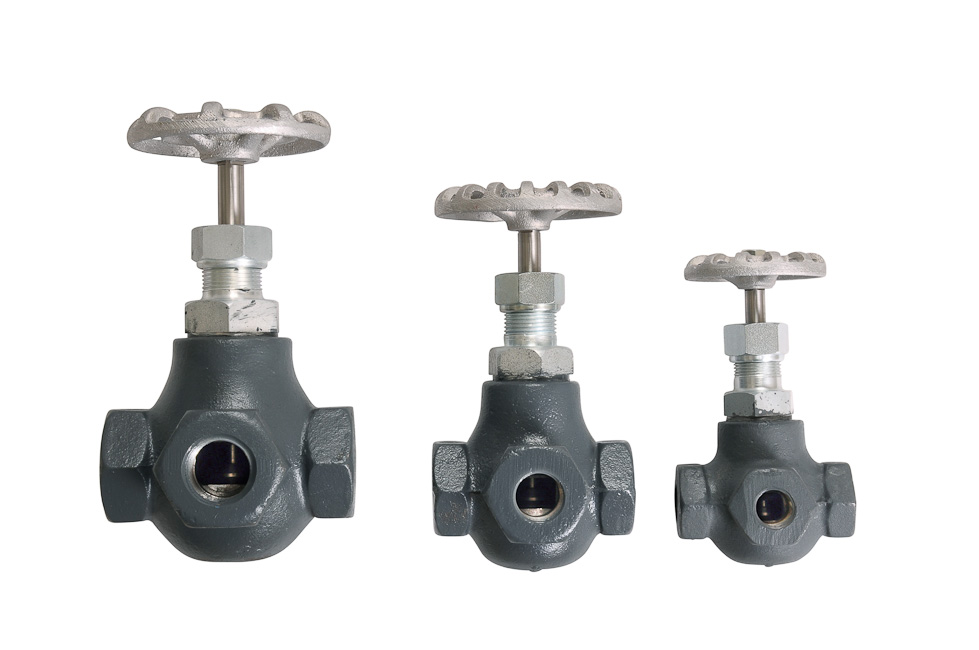

Manifold shut-off valves are designed for use in dual relief valve installations. This valve operates with the intake and one outlet port open at all times.
- Valve bodies are compact in design.
- Stem is made of stainless steel.
- Valve ports are full sized and marked for ease of installation.
- Packing and gasket are made of Teflon.
- Each valve comes with instructions for use attached. DO NOT DISCARD.
